  - All kind of furniture Edge treatment (모든 기구류의 EDGE 처리)
  - Profile wrapping(래핑 가공용)
  - Consumer Electronics (speakers, projection, T.V etc)
    (각종 전자부품용)
Item Thickness(mm)
두께		 Width(mm)
폭		 Roll Length(m)
권취
PVC Solid 0.1 ~ 0.25 1250 300 ~ 800
Printed 0.15 ~ 0.25 1250 300 ~ 800
Non
-PVC		 Solid 0.1 ~ 0.25 1250~1400 300 ~ 1500
Printed 0.1 ~ 0.25 1250~1400 300 ~ 1500
  - Environmentally safe in production(친환경적 소재)
  - Perfect wood grains to natural counterparts by special valley
    printing and embossing technique (특수 인쇄에 의한 천연질감
    의 인쇄 연출)
  - Economical lamination costs and perfect adhesiveness by
    primer treatment react to cheap glues(경제적 합판비용)
  - Excellent barrier against formaldehyde(포름알데히드 가스에
    대한 우수한 차단력)
  -No corrosive by products when burnt(다이옥신으로부터의 해방)
              Technical Specification Sheet
Print Data Sheet

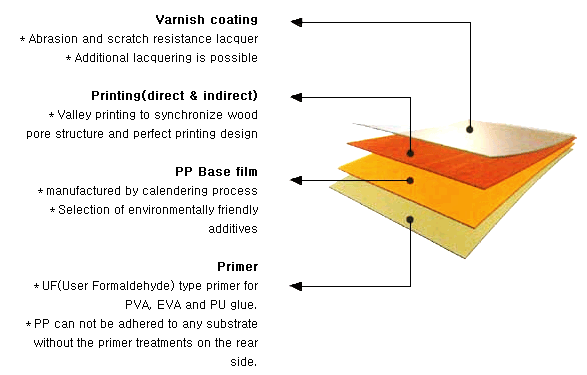

ECO Coated type
Characteristic PP Deco sheet with primer coating for the laminating to the furniture finishing
Surface finish Transparent laquer(PU or MMA) over printed layer
Thickness range
Width & Color		 0.10mm - 0.20mm
950mm - 1400mm
various
Properties Test method Value Unit
Thickness allowance
0.10mm - 0.2mm		 JIS K6734 ±3 %
Width & length
allowance 		JIS K6734 ±3 mm
Density JIS K6734 1.24 g/㎤
Shrinkage
(100℃ 5minutes)
machine direction 		JIS K6734 -0.5
0.5 		%
%
Tensile strenrgth
machine direction
transverse direction
 JIS K6734 2.5
1.9 		kg/㎟
kg/㎟
Elongation
machine drection
transverse direction
 JIS K6734 566
475 		%
%
Tear strength
machine direction
transverse direction		 JIS K6734 16.8
10.2 		kg/mm
kg/mm
Adhesive strength 3.88 kgf/25mm
Melt range 120-140 ℃
Chemical resistance
2% NaoH
MEK		 Rubbing over
20 times 		No defect
No defect 		No defect
No defect
Discoloration 650 Hrs.under uv-con machine test △E 2.50

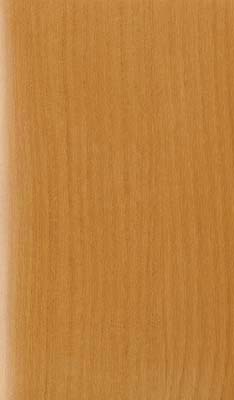

WOOD GRAIN 		BROWIN COLOR
Hardness(Pencil) GOOD 180℃ X 5MIN
PVC Deco Foil for Wrapping
Characteristic PVC Deco sheet to wrap
in window frame
(PVC, Aluminium frame)
Surface finish one side emboss and
other side matt
Thickness range
Width & Color		 0.18mm - 0.20mm
1250mm - 1300mm
various
Properties Test method Value Unit
Thickness allowance
0.18mm - 0.2mm		 JIS K6734 ±3 %
Width & length
allowance 		JIS K6734 ±3 mm
Density JIS K6734 1.32 g/㎤
Shrinkage
(80℃ 10minutes)
machine direction
transverse direction 		KSM 3802 - 5
0.5 		%
%
Tensile strenrgth
machine direction
transverse direction 		DIN 53455 3.6
3.26		 kg/㎟
kg/㎟
Tear strength
machine direction
transverse direction 		DIN 53455 11.6
9.37		 kg/mm
kg/mm
Impact strength
machine direction
transverse direction 		KS M3501 7 >
9 >		 kg f/㎠
kg f/㎠
Elongation
machine drection
transverse direction		 DIN 53455 164.2
202.5 		%
%
Water transmission KS K 0594 0.2 g/㎡/hr
Discoloration Cycling program :
UV 8Hrs
(60℃)
Condensation 4Hrs(50℃)		 Solid 2.0-3.0
printed 2.5-3.0		 UN-CON
(ATLAS.USA)
1,000 Hrs
Cycling test
Emboss
Extinction		 GOOD 60℃ X 30sec
ECO Coated type(for v-cutting)
Characteristic PP Deco sheet with primer coating for the laminating to the furniture finishing
Surface finish Transparent laquer(PU or MMA) over printed layer
Thickness range
Width & Color		 0.20mm
950mm - 1400mm
various
Properties Test method Value Unit
Thickness allowance
0.10mm - 0.2mm		 JIS K6734 ±3 %
Width & length
allowance 		JIS K6734 ±3 mm
Density JIS K6734 1.24 g/㎤
Shrinkage
(100℃ 5minutes)
machine direction 		JIS K6734 -0.5
0.5 		%
%
Tensile strenrgth
machine direction
transverse direction 		JIS K6734 4.07
3.42		 kg/㎟
kg/㎟
Elongation
machine drection
transverse direction 		JIS K6734 345
79		 %
%
Tear strength
machine direction
transverse direction 		JIS K6734 15.8
6.5		 kg/mm
kg/mm
Adhesive strength 3.88 kgf/25mm
Melt range
60-180 ℃
Chemical resistance
2% NaoH
MEK 		Rubbing over
20 times 		No defect
No defect 		No defect
No defect
Discoloration 650 Hrs.under uv-con machine test △E 2.50 BROWIN COLOR
WOOD GRAIN
Hardness(Pencil) GOOD 180℃ X 5MIN
